Execution Dashboard
Execution Dashboard summarizes recent process execution records for the configured Boomi account and selected filters.
What This Feature Answers
Section titled “What This Feature Answers”- How many process runs occurred in the selected time window?
- How many runs ended in an error-like status?
- Which processes, runtimes, or error signatures are most concentrated?
- Is the current view empty because there were no recent runs, or because access/data is limited?
Core Controls
Section titled “Core Controls”- Time window: Last 1 hour, Last 24 hours, or Last 7 days.
- Status filter: All statuses or a narrower execution state group.
- Environment filter: All environments or one or more selected environments.
- Refresh Execution: request fresh execution data for the selected view.
Typical Workflow
Section titled “Typical Workflow”- Open the Execution Dashboard tab.
- Pick a time window that matches the incident, release, or support request.
- Narrow by status or environment when triaging a known problem.

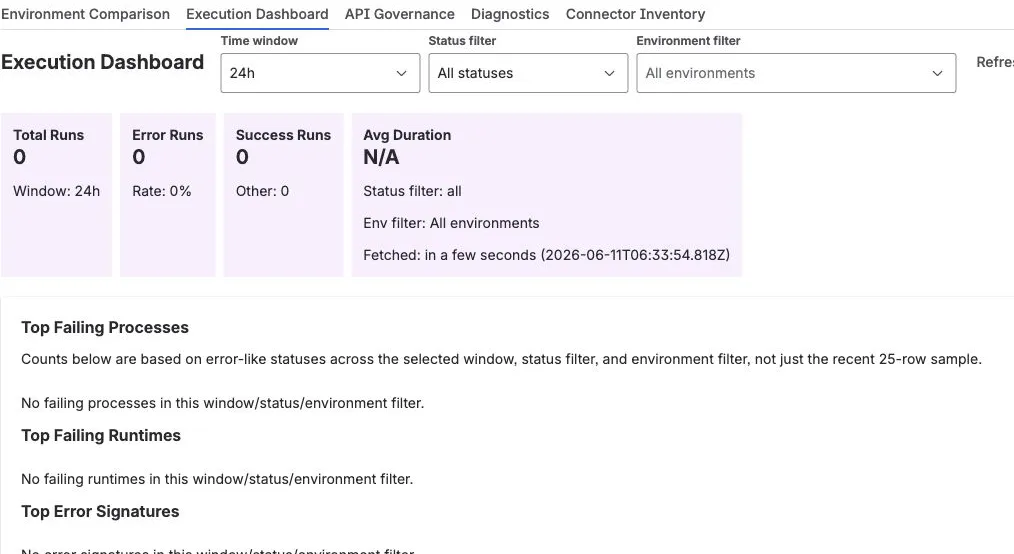

- Review Total Runs, Error Runs, Success Runs, Avg Duration, and fetched time.
- Use Top Failing Processes, Top Failing Runtimes, Top Error Signatures, and Recent Executions to decide where to investigate next.
Interpretation Tips
Section titled “Interpretation Tips”An empty execution dashboard can be a healthy state when no executions occurred in the selected window. If execution access is unavailable, BoomiSight explains that runtime, deployment, API, and connector views can still be available.
The fetched time is shown in a readable local format. When more than one environment is selected, BoomiSight keeps the combined filter scope distinct from a single-environment cache entry.
